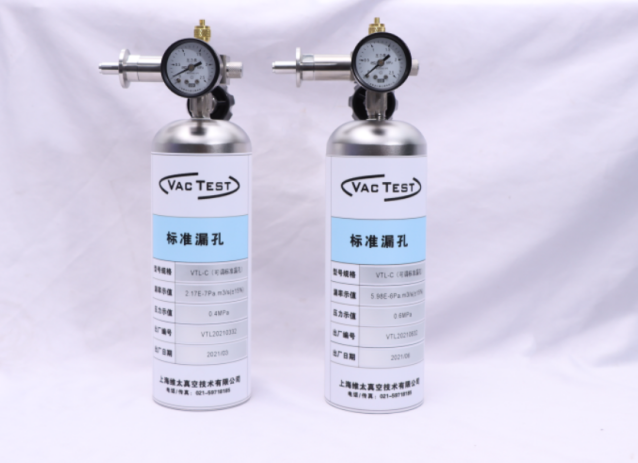

Adjustable Channel Type Leak
Key words: standard leak | MPCVD | capacitance film gauge vacuum gauge | high and low vacuum calibration device | helium leak calibration device
Classification:
Product Details
VTL3-5 VTL4-6 VTL5-7 VTL6-8
The adjustable leak rate standard leak hole is a channel type leak hole, which can span 3 leak rate orders of magnitude. It can be used as a vacuum leak hole or a positive pressure leak hole, realizing the superior performance of 3 calibration orders of one leak hole and greatly facilitating the use of customers.
|
Model |
VTL3-5 |
VTL 4-6 |
VTL 5-7 |
VTL 6-8 |
|
Leak range |
10-3~10-5Pa·m3/s |
10-4~10-6Pa·m3/s |
10-5~10-7 Pa·m3/s |
10-6~10-8 Pa·m3/s |
|
Filling gas |
He,D2,H2,N2,95% N2 + 5% H2 mixed gas, etc. (customizable) |
|||
|
Allowable deviation of indication value |
±15% |
|||
|
temperature compensation |
About 0.2%/℃ |
|||
|
Leak element |
microchannel tube |
|||
|
Anti-clogging ability |
Micro-channel type: excellent |
|||
|
Interface |
Interface: KF16, KF25, suction gun connector can be customized |
|||
|
Export |
Vacuum or atmosphere |
|||
|
Air chamber volume |
1000mL or customized |
|||
|
Charging |
Repeatable inflation |
|||
|
Pressure |
20bar |
|||
|
annual attenuation |
According to the use frequency and leakage rate value size |
|||
Product Application
Adjustable channel leak products are widely used in gas analysis, vacuum technology, flow measurement and other fields, as well as product quality control and process monitoring.
